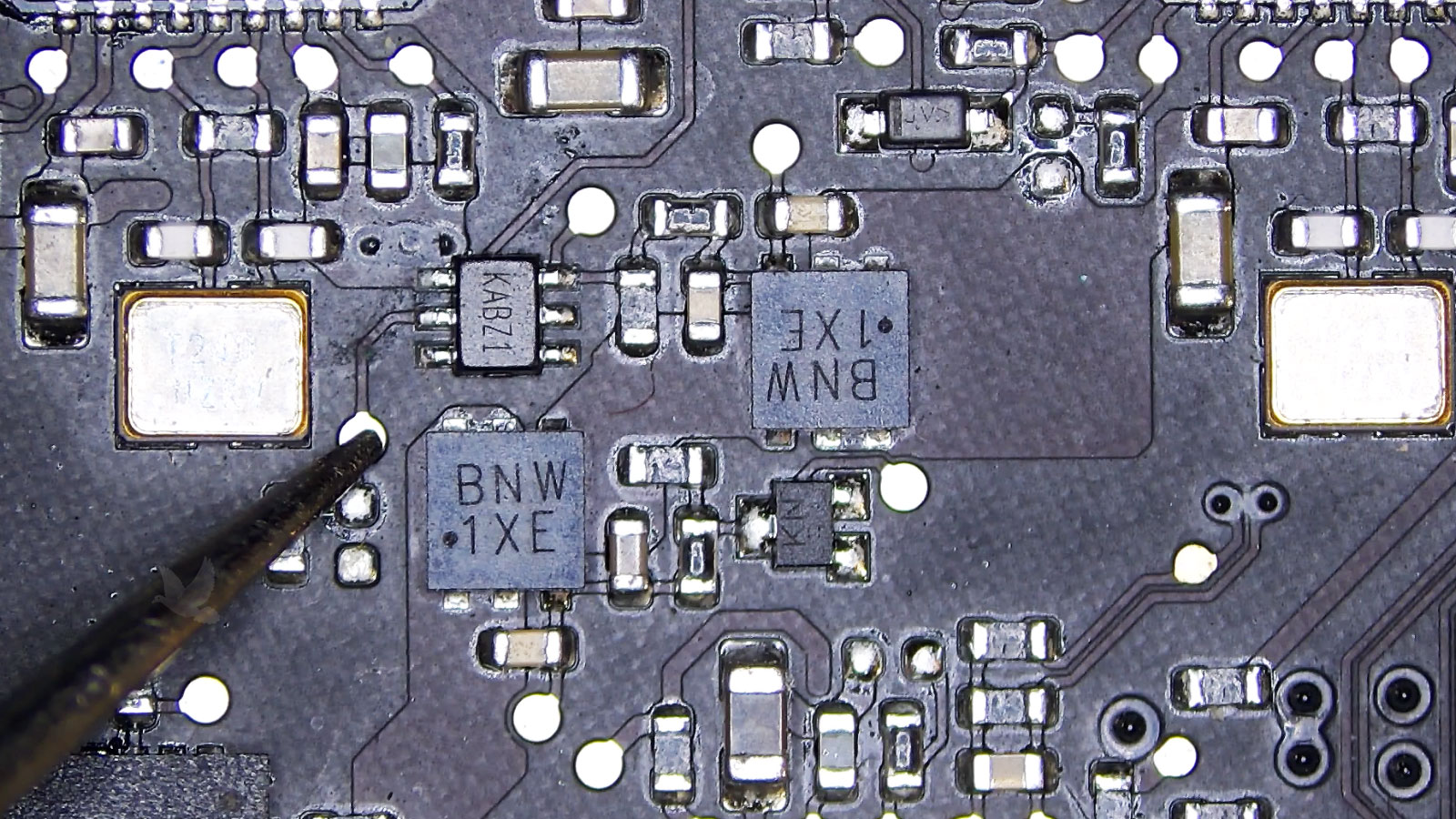

Testing KABZ1 center pin pad for unstable voltage readings
KABZ1 is being tested from the pad connected to the center pin. Visible dried residue suggests previous contamination or liquid exposure in the area. During testing, the voltage repeatedly appears and disappears instead of remaining stable, indicating an abnormal condition and possible damage somewhere in the circuit. This repair image is an independent work sample and is not an illustration of the educational subject discussed below.

Understanding Native FLAC Support in Windows 10

Digital Music Usually Had to Choose Between Size and Fidelity

Audio files can consume substantial storage when every part of the original digital signal is preserved.

Formats such as MP3 became enormously successful because they reduced file sizes by discarding information that compression algorithms determined could be removed with limited perceptible effect. The result was convenient for storage and transmission, but the compressed file was no longer an exact representation of the original audio data.

Lossless compression offered another approach.

Smaller Did Not Have to Mean Throwing Audio Information Away

A lossless audio format can reduce the amount of storage required while preserving enough information to reconstruct the original uncompressed digital audio exactly.

The Audio Could Be Compressed and Recovered Without Losing Samples

FLAC stands for Free Lossless Audio Codec.

Unlike lossy formats that permanently remove information to obtain smaller files, FLAC compresses audio in a reversible way. When the file is decoded, the original digital audio samples can be reconstructed rather than approximated from a reduced representation.

The compression changes storage, not the underlying recovered signal.

Lossless Has a Specific Meaning

Lossless compression means that decoding can reproduce the original digital information rather than generating a version from which some source data has permanently been discarded.

Preserving Everything Did Not Require Storing Everything Literally

Uncompressed PCM audio stores sample information directly and can become large, particularly at higher sample rates, bit depths, or with long recordings.

FLAC looks for patterns in the audio data that allow the same information to be represented more efficiently. The amount of reduction depends on the source material because some signals compress more effectively than others.

No fixed compression ratio applies to every recording.

Lossless Compression Finds Redundancy Instead of Removing Quality

The purpose is not to decide which sounds can be discarded. It is to encode the existing digital information more efficiently so the same samples can later be reconstructed.

Playing the File Often Required Something Else

FLAC became popular among music collectors, audio enthusiasts, archival users, and people who wanted to preserve recordings without lossy compression.

But widespread use of a format does not automatically mean an operating system understands it natively. Earlier Windows installations often depended on third-party media players, filters, or codec components to provide FLAC playback.

The file could exist perfectly well while the Windows media platform did not know how to decode it.

A Playback Failure Did Not Mean the Audio Was Damaged

A valid FLAC file could fail to play in an application simply because the media components available to that application did not include a compatible FLAC decoder.

FLAC Decoding Became a Windows Capability

Windows 10 expanded the media formats that the operating system could handle natively.

FLAC became part of the Windows audio codec environment rather than something that necessarily had to be supplied by an independent codec package. Applications capable of using the relevant Windows media components could benefit from that support.

The operating system itself had learned how to decode the format.

FLAC Became Part of Windows Media Support

Microsoft’s Windows media documentation lists FLAC among the audio codecs supported by the Windows platform, allowing compatible applications to decode FLAC audio through built-in media capabilities.

The Codec Could Become Available to Applications Using Windows Media Components

There is an important difference between one application understanding a format and the operating system providing support for it.

A specialized music player can carry its own FLAC decoder. Other applications receive no benefit from that decoder unless they have been specifically designed to use it.

Platform support can be shared more broadly.

The Decoder Did Not Have to Be Reinvented by Every Application

When codec support exists in the Windows media platform, compatible software can make use of common operating-system media infrastructure rather than necessarily bundling a separate implementation.

Both Compressed Audio but Only One Preserved the Original Data

MP3 and FLAC can both occupy less storage than an uncompressed audio source, but they achieve that result differently.

MP3 uses lossy compression. Information is discarded during encoding according to a perceptual compression model. Increasing compression generally requires removing more information.

FLAC does not use that tradeoff.

Lossy and Lossless Are Not Different Quality Settings of the Same Idea

Lossy encoding permanently changes the information represented by the audio file, while lossless encoding preserves the source digital information so it can be recovered during decoding.

Lossless Audio Did Not Have to Remain Uncompressed

WAV is often associated with uncompressed PCM audio, which stores sample data with relatively little compression complexity.

That simplicity can be useful, but the resulting files can be considerably larger than necessary for long-term music storage. FLAC can preserve the same underlying PCM information while representing it more efficiently.

Both can preserve fidelity while using storage differently.

Compression Does Not Automatically Mean Quality Loss

The important question is whether the compression is lossy or lossless. FLAC demonstrates that an audio file can be compressed without requiring the decoded samples to differ from the original source.

One Lossless File Could Become the Long-Term Source

Lossless audio is particularly useful when a collection may need to be converted again in the future.

If the preserved source is FLAC, another format can later be created from the lossless copy. If the only surviving source is already a lossy MP3, converting it to another lossy format cannot restore information discarded during the original encoding.

The archive determines what remains possible later.

Keep the Lossless Copy When the Recording Matters

A lossless master provides a better starting point for future conversions because additional versions can be created without beginning from audio that has already lost information through earlier lossy compression.

A Lossless Container Could Not Reverse an Earlier Lossy Encode

The word lossless describes what happens during the FLAC encoding and decoding process.

It does not mean FLAC can recreate information that was missing from the source provided to the encoder. Converting an MP3 into FLAC preserves the decoded MP3 signal, including the consequences of the earlier lossy compression.

A larger file does not create missing information.

Changing the Extension Does Not Restore Audio Quality

Once information has been discarded by lossy encoding, saving the resulting audio as FLAC prevents additional loss during that conversion but cannot reconstruct the original data that was already removed.

An Audio File Needed More Than Sound Samples

Large music libraries depend on information such as artist, album, track number, title, genre, and artwork.

FLAC supports metadata that allows compatible software to organize and identify recordings without relying only on filenames and folder structures.

That makes the format practical for ordinary music collections as well as archival storage.

Lossless Audio Could Still Behave Like Organized Digital Music

FLAC files can carry descriptive metadata alongside the encoded audio, allowing compatible applications to build browsable music libraries around the recordings.

The File Could Carry Visual Information Alongside Audio Metadata

Digital music libraries often use album artwork as part of navigation and identification.

FLAC metadata can include embedded pictures, allowing artwork to remain associated with a recording even when the file is copied outside its original folder structure.

The music file can carry more of its own context.

A Music Library Is More Than a Collection of Audio Streams

Metadata support allows applications to present recordings by album, artist, track, and artwork rather than forcing users to manage every recording through filenames alone.

The Format Was Not Restricted to CD Specifications

FLAC is not tied exclusively to the sample rate and bit depth associated with audio CDs.

It can represent PCM audio using other supported sampling configurations, making it useful for higher-resolution recordings as well as conventional music collections.

The codec describes compression rather than one fixed recording quality.

FLAC Does Not Define One Sound Quality

The quality of a lossless file depends on the source audio represented inside it. Lossless compression preserves that source; it does not determine whether the source was originally CD quality, higher resolution, or something else.

Lossless Files Could Not Improve a Weak Playback Chain

Decoding a FLAC file perfectly is only one part of audio playback.

The operating system still sends the resulting digital audio through audio drivers, hardware conversion, amplification, headphones, speakers, or other equipment. Configuration and hardware quality can influence the final listening experience.

The file format cannot control the entire chain.

Lossless Does Not Mean Every Computer Sounds Identical

FLAC can preserve the source digital information, but playback hardware, processing, volume handling, drivers, and output equipment remain separate parts of the system.

Larger Music Files Were Easier to Keep Than They Had Been Years Earlier

The usefulness of lossless audio also changed as computer storage expanded.

When disk capacity was expensive and portable players held relatively little data, aggressively compressed music offered an obvious practical advantage. Larger hard drives and increasingly capable devices reduced some of that pressure.

Preserving more information became easier to justify.

The Storage Tradeoff Was Changing

As available storage increased, the additional space required for lossless music became less significant for users who valued retaining an exact digital representation of their source recordings.

Lossless Audio Was Becoming Easier to Move Between Devices

Large audio collections are not useful if transferring them is prohibitively slow.

Faster local networks, USB connections, broadband Internet service, and larger storage devices made the practical cost of moving lossless files lower than it had been during the early years of compressed digital music.

The surrounding technology was catching up with the format.

A Format Becomes More Practical When the Ecosystem Changes Around It

FLAC itself did not need to become dramatically smaller for lossless music to become more convenient. Improvements in storage capacity and transfer speeds changed the significance of its larger file sizes.

Native Decoding Did Not Make Specialized Music Software Unnecessary

Applications designed specifically for music collections can provide features well beyond basic codec support.

Library management, tagging tools, audio processing, device synchronization, advanced output configuration, format conversion, and specialized interfaces can all remain reasons to use dedicated software.

Windows supporting FLAC solved a compatibility problem, not every music-management problem.

Native Support Establishes a Baseline

The value of built-in codec support is that compatible applications do not necessarily require an additional decoder simply to understand the audio format. Specialized software can still add capabilities above that foundation.

One More Common Reason to Modify Windows Disappeared

Installing large codec collections was once a routine response when Windows could not play a particular media file.

But every additional media component modifies the software environment and can introduce overlapping decoders or other compatibility complications. Built-in support reduces the need to alter the system merely to obtain basic playback for a supported format.

Simpler can also be safer.

Use Built-In Support Before Adding More Codecs

If Windows already supports a media format natively, installing an unrelated codec package simply because the file does not play may add complexity without addressing the actual cause of the problem.

Removing Windows Media Technologies Could Remove FLAC Support Too

Special Windows N and KN editions were distributed without several media technologies included in ordinary Windows installations.

Microsoft’s Media Feature Pack documentation lists FLAC among the audio codecs supplied as part of the Windows media functionality restored by the package.

That helps show that FLAC support belonged to the operating-system media stack.

FLAC Was Part of Microsoft’s Media Components

Microsoft’s Windows 10 Media Feature Pack documentation identifies FLAC among the audio codecs provided by Windows media technologies, alongside formats such as MP3, AAC, WMA, and other supported audio types.

Windows Could Decode a Bad Recording Perfectly

A lossless codec preserves the digital source supplied to it.

If that source contains distortion, clipping, noise, poor mastering, or information previously lost through another conversion, FLAC faithfully preserves those characteristics too.

Lossless describes fidelity to the source, not excellence of the source.

Lossless Cannot Improve What Was Recorded

A technically perfect lossless copy of a poor source remains a perfect copy of a poor source. Codec quality and recording quality are separate questions.

The Improvement Appeared When the File Simply Opened

Native codec support does not necessarily create a dramatic new interface.

Its value becomes apparent when a file that once required another player or decoder begins working through applications that can use the operating system’s media capabilities.

The missing obstacle becomes the feature.

Compatibility Is Often Most Noticeable When It Is Missing

When an operating system understands a common media format directly, users can spend less time thinking about decoders and more time treating the file as ordinary content.

The Built-In Media Environment Was Becoming Broader

FLAC support was part of a larger expansion of Windows media compatibility.

Windows 10 arrived during a period when users increasingly expected operating systems to work with media originating from many different applications, devices, and ecosystems rather than only a narrow collection of historically favored formats.

Native FLAC support helped close one of those compatibility gaps.

The Format Did Not Need to Belong to Microsoft to Belong in Windows

Supporting widely used media standards at the platform level makes the operating system more useful with files people already possess, regardless of where those formats originated.

The Music Could Reach Windows Without Bringing Its Own Decoder

FLAC had already demonstrated its usefulness long before Windows 10.

The significant Windows change was that compatible software could increasingly rely on media capabilities supplied by the operating system rather than requiring users to locate additional components just to decode an ordinary lossless audio file.

The format had moved closer to being an ordinary Windows citizen.

The music did not become more lossless in Windows 10. Windows simply learned how to understand it on its own.

Native FLAC Support Made Lossless Music Easier to Use in Windows

Windows 10 incorporated FLAC into Microsoft’s supported audio environment. Microsoft’s Windows media documentation lists FLAC among the codecs available to Windows applications, while the Windows 10 Media Feature Pack documentation identifies FLAC as one of the audio codecs provided by Microsoft’s media technologies.

The technical distinction behind FLAC remained unchanged. It is a lossless audio codec, meaning compression can reduce storage requirements while allowing the decoded digital audio to reproduce the original source information rather than intentionally discarding portions of it as lossy codecs do.

For Windows users, the practical improvement was straightforward. FLAC files no longer necessarily required a separate codec package merely because the operating system lacked a native decoder. Windows had expanded its own media vocabulary, making a widely used lossless format easier to treat like ordinary digital music.
