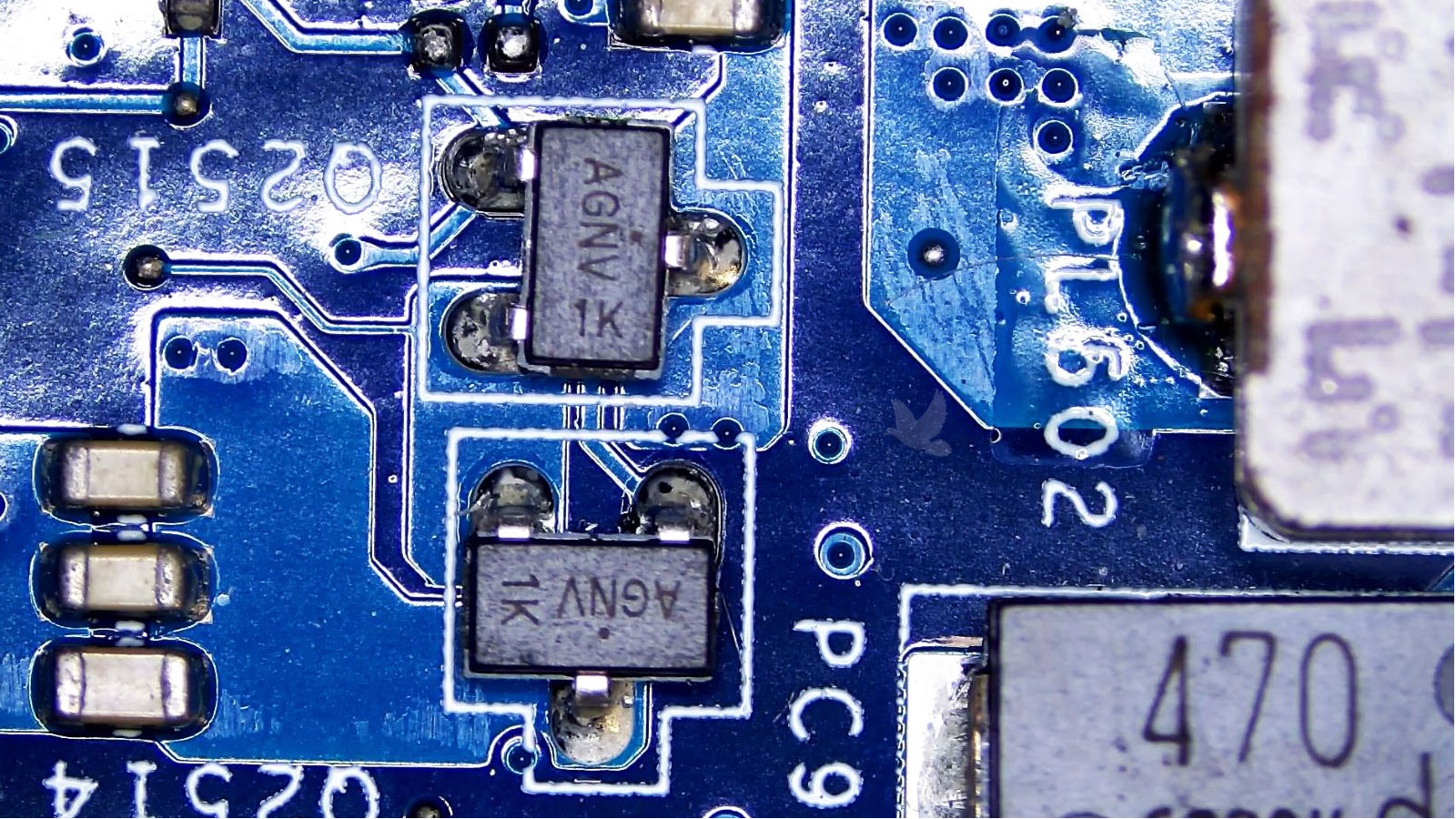

Shorted AGNV 1K transistor at Q2515 beside matching transistor and coil
Two transistors marked AGNV 1K are positioned beside the coil, with the transistor at Q2515 shorted and pulling the entire power rail to ground. This repair image is an independent work sample and is not an illustration of the educational subject discussed below.

Understanding Windows Hello in Windows 10

The Password Had Been Protecting Computers for Decades

Signing into a personal computer traditionally began with something the user had to remember.

A password could protect a Windows account from casual access, but its usefulness depended heavily on the person choosing, remembering, and protecting that secret. Short passwords were easier to guess. Reused passwords could expose several accounts at once. Complicated passwords were safer in some respects but increasingly difficult to remember.

Windows 10 introduced another way for compatible computers to determine who was sitting in front of them.

Authentication Could Become Personal

Instead of proving identity only by typing a secret, Windows could use characteristics belonging to the person attempting to unlock the device.

A Look or a Touch Could Replace Typing the Password

Windows Hello brought biometric authentication directly into Windows 10.

On compatible hardware, a user could enroll a face, iris, or fingerprint and later use that biometric characteristic when signing into the computer.

The familiar password did not have to be entered during every normal unlock.

Biometrics Became Part of Windows Itself

Fingerprint and facial technologies had existed before Windows 10, but Windows Hello provided an operating-system authentication framework designed around biometric sign-in rather than leaving every computer manufacturer to create an entirely separate experience.

The Computer First Has to Learn Who the User Is

A camera cannot securely recognize a person it has never enrolled.

Windows Hello therefore begins with a setup process in which the legitimate account holder establishes biometric information on the device.

Later sign-in attempts can be evaluated against the enrolled information to determine whether the person presenting the biometric characteristic corresponds to the authorized user.

Recognition Requires Enrollment First

Windows does not simply look at a face and discover someone’s Windows account. The biometric relationship has to be deliberately established on the device before it can be used for authentication.

Ordinary Webcam Recognition Would Be Too Easy to Fool

A simple camera can capture the visible appearance of a person’s face.

That is useful for photographs and video calls, but authentication requires stronger evidence. A security system should not accept a printed photograph merely because the picture resembles the account owner.

Windows Hello facial authentication was designed for compatible cameras capable of providing the additional information required for secure recognition.

Not Every Webcam Is a Windows Hello Camera

A computer can have an excellent conventional webcam and still lack the specialized imaging hardware required for Windows Hello facial authentication.

Infrared Imaging Helps the Computer See More Than a Normal Picture

Compatible Windows Hello facial systems use specialized infrared imaging rather than depending only on the ordinary color picture familiar from a webcam.

Infrared information helps the authentication system analyze characteristics of the person in front of the computer under conditions different from ordinary photography.

This makes the security problem fundamentally different from comparing a saved portrait with another conventional photograph.

The Camera Hardware Matters

Facial authentication depends on capabilities designed for identity verification, which is why installing Windows 10 alone cannot give every existing laptop Windows Hello face recognition.

The Finger Can Become the Sign-In Gesture

Windows Hello is not limited to facial recognition.

A compatible fingerprint reader can allow the user to authenticate by presenting an enrolled finger. The device captures the fingerprint information needed by the biometric system and Windows determines whether it corresponds to the enrolled user.

For computers already equipped with suitable fingerprint hardware, the sign-in process can become a brief physical interaction rather than a sequence of typed characters.

Authentication Moves From Memory to Presence

The user no longer has to reproduce a memorized password during every normal sign-in. The computer can instead verify a biometric characteristic presented at the device.

A Fingerprint Reader Can Still Fail for Physical Reasons

Biometric authentication depends on obtaining a usable reading.

Dirt on the sensor, moisture, damage to the finger, poor positioning, or hardware problems can prevent a fingerprint reader from obtaining enough information for a successful match.

A failed scan therefore does not automatically mean that Windows has forgotten the user.

Recognition Failure and Identity Failure Are Not the Same

If the sensor cannot capture suitable biometric information, troubleshooting should include the reader and physical conditions rather than immediately assuming that the Windows account itself is damaged.

Your Face Does Not Need to Become a Website Password

A major concern with biometric authentication is what happens to the information representing the user’s physical characteristics.

A conventional password can be changed after a breach. A person cannot replace a face or fingerprint nearly as easily.

Windows Hello was designed around device-based authentication so that biometric information used for recognition remains tied to the local authentication process rather than becoming a reusable password sent to every service.

Biometrics Verify the User at the Device

The face or fingerprint can unlock access to protected authentication material without requiring the biometric itself to become the credential presented to every remote service.

A Windows Hello PIN Is Not Merely a Shorter Account Password

A numeric PIN can appear weaker than a long password because it may contain fewer characters.

That comparison misses an important difference in how the credentials are used. A traditional account password can potentially be entered from another computer against the same account. A Windows Hello PIN is associated with the particular device on which it was established.

Possessing the PIN without possessing the corresponding device therefore does not provide the same kind of reusable credential as knowing the user’s account password.

Location Changes the Meaning of a Credential

A secret useful only together with one enrolled device presents a different risk from a password that can potentially be submitted from anywhere an account can be reached.

The Device Becomes Part of the Authentication

Windows 10’s newer authentication model places greater importance on the computer itself.

The enrolled device can hold protected cryptographic information associated with the user’s identity. Windows Hello verifies that the authorized person is present before allowing that protected identity to be used.

Authentication therefore becomes a relationship among the user, the enrolled device, and the service being accessed.

The Device

Contains protected authentication material associated with the user’s enrolled identity.

The User Gesture

A face, fingerprint, iris, or PIN verifies that the authorized person is present and can use the device’s protected credential.

The Remote Service Does Not Need the User’s Password Every Time

Windows 10 introduced Microsoft Passport alongside Windows Hello as part of the move toward stronger authentication.

After enrollment, the device can use cryptographic credentials to authenticate the user to supported accounts and services. Windows Hello or a PIN verifies the person locally so that the device can use those credentials.

This changes the role of the password from something repeatedly transmitted or entered into something that can increasingly be avoided during ordinary authentication.

The Password Is No Longer the Thing Proving Every Sign-In

The enrolled device and the user’s local verification can participate in strong authentication without requiring the same reusable password to be presented during each supported sign-in.

A Password Can Be Copied Without the Owner Knowing

One of the dangerous properties of a password is that it is information.

Malware can capture it. A fraudulent website can request it. A database breach can expose it. Someone watching the keyboard may learn it. Once copied, the original owner still possesses the password and may have no immediate indication that someone else does too.

The attacker can then attempt to reuse the stolen credential from another location.

A Secret Can Exist in Two Places at Once

Credential theft does not require physically taking anything away from the victim. Copying the information can be enough to give another person something that can be replayed later.

A Device-Bound Credential Is Harder to Carry Away

When authentication depends on cryptographic material protected on an enrolled device, stealing a piece of information from a remote service is less useful by itself.

The attacker would need to overcome the relationship between the protected credential and the device rather than merely learning a password that can be typed somewhere else.

This is one reason Windows 10’s authentication changes were about more than making sign-in faster.

Reducing Reusable Secrets Changes the Attack

If authentication cannot simply be reproduced by typing a stolen password from another computer, credential theft becomes substantially less straightforward.

A Faster Sign-In Does Not Necessarily Need to Be a Weaker Sign-In

Security controls often become unpopular when they add repeated steps to ordinary work.

A person may choose a weak password because entering a complex one dozens of times per day is frustrating. A biometric sign-in can reduce that friction while still participating in a stronger authentication architecture.

The easier action for the legitimate user can therefore be the more secure one.

Good Security Can Remove Work From the User

Looking at the computer or touching a fingerprint reader can be quicker than typing a password while reducing reliance on a secret that could be copied and reused elsewhere.

Two Windows 10 Computers Can Offer Different Sign-In Choices

Installing the same operating system does not give every computer identical biometric capabilities.

One laptop may contain a compatible infrared camera. Another may have a fingerprint reader. A desktop may contain neither until appropriate hardware is added.

Windows exposes authentication options according to the hardware and drivers actually available.

Missing Windows Hello Options May Be Expected

If a biometric sign-in choice does not appear, the first question is whether the computer contains compatible hardware rather than whether Windows has simply hidden a universal feature.

The Driver Is Part of the Authentication Chain

A biometric sensor cannot communicate usefully with Windows if the operating system does not have appropriate support for the device.

The camera or fingerprint reader, its driver, Windows biometric components, and the user’s enrollment all participate in the sign-in process.

A failure at one layer can make the entire feature appear unavailable.

Sensor

Captures the physical information required for biometric recognition.

Driver

Allows Windows to communicate correctly with the biometric hardware.

Enrollment

Establishes the authorized user’s biometric relationship with the Windows account on that device.

A Replaced Camera Can Change More Than Video Calls

A laptop camera assembly may contain hardware used for Windows Hello facial recognition in addition to the ordinary camera used for photographs and video.

Replacing the assembly with a visually similar part that lacks the required biometric capabilities can leave ordinary webcam functions working while Windows Hello no longer recognizes compatible facial hardware.

The computer may appear repaired until the owner attempts biometric sign-in.

A Working Webcam Does Not Prove Windows Hello Is Restored

Repair verification should consider whether the replacement preserves specialized authentication hardware when the original computer supported biometric facial sign-in.

A Fingerprint Reader Can Have Its Own Hardware Failure

Fingerprint sensors are physical components connected to the computer through their own electrical and data paths.

A damaged reader, loose cable, failed connector, missing driver, or board-level problem can make biometric sign-in disappear even though the keyboard, display, and ordinary Windows account continue working normally.

The symptom therefore needs to be isolated rather than treated automatically as an account-password problem.

Test the Authentication Hardware Separately

If password or PIN sign-in works but fingerprint authentication does not, the functioning account provides useful evidence that the failure may lie specifically in the biometric path.

Working Hardware Does Not Guarantee the Saved Recognition Data Is Healthy

A sensor can function correctly while the user’s biometric enrollment has become unusable or inconsistent.

Removing the affected enrollment and registering the biometric characteristic again can recreate the local recognition relationship without changing the underlying Windows account.

This distinguishes biometric setup from the account identity itself.

The Account and the Biometric Enrollment Are Related but Separate

A user can still own and access the Windows account even when the particular face or fingerprint enrollment used for convenient sign-in needs to be recreated.

Reinstalling Windows Does Not Preserve Every Authentication Enrollment

A fresh Windows installation creates a new local operating-system environment.

Restoring documents afterward does not automatically reconstruct every biometric enrollment and device-bound authentication relationship that existed in the previous installation.

The user may need to configure Windows Hello again after the operating system has been reinstalled.

Personal Files Are Not the Entire Windows Identity State

A backup containing documents and photographs can be complete for user data while still not reproducing the security configuration that previously allowed biometric sign-in.

Face Recognition Does Not Have to Be the Only Way Back In

A biometric system needs an alternative for situations in which the sensor cannot obtain a valid reading.

A camera can fail. A fingerprint reader can become damaged. Environmental conditions can interfere with recognition. The user’s appearance or physical condition can also make a particular biometric method temporarily difficult to use.

Windows Hello therefore exists within a broader sign-in system rather than making access depend on one sensor forever.

Biometrics Improve Sign-In Without Making the Sensor Irreplaceable

Alternative authentication methods allow the legitimate owner to recover access when the preferred biometric method is temporarily unavailable.

Moving to Another Computer Requires Another Enrollment

A user’s face does not automatically configure every Windows 10 computer the person approaches.

Windows Hello is established in connection with the device on which it is being used. A new computer needs its own setup before it can recognize the user through Windows Hello.

This local relationship is part of what separates biometric verification from a password that can simply be typed on any keyboard.

The Same Person Can Have Separate Device Relationships

Enrollment on one PC does not mean every other PC possesses the biometric information and protected credentials required to authenticate that user.

Possessing the Device Is Not Supposed to Be Enough

A thief who steals a laptop has acquired one part of the authentication relationship.

The purpose of Windows Hello is that the device alone should not be sufficient. The protected credentials remain associated with verification of the authorized user through the configured sign-in mechanism.

This is fundamentally different from a system in which obtaining a reusable password may allow an attacker to attempt authentication remotely without ever possessing the original computer.

Physical Theft Still Matters

Stronger authentication does not make a stolen computer harmless. Disk encryption, account security, recovery procedures, and other protections remain important when hardware containing personal information is lost.

Biometric Sign-In Can Participate in Organizational Identity

Windows Hello was not designed only for consumers unlocking home laptops.

Windows 10’s authentication architecture allowed organizations to combine enrolled devices with biometric or PIN verification as part of stronger workplace authentication.

This gave businesses another path away from depending exclusively on reusable passwords.

The Same Principle Scales Beyond One PC

A locally verified user can use protected device credentials to participate in authentication to supported organizational resources without making the user’s password the centerpiece of every transaction.

A Face Cannot Protect an Already Unlocked Computer

Authentication determines whether access should begin.

Once the user has successfully signed in and leaves the computer unlocked, another person may be able to use the active session without defeating the biometric system at all.

Automatic locking and sensible physical security therefore remain important even when Windows Hello is configured.

Strong Sign-In Does Not Replace Session Security

The best authentication mechanism provides little protection against someone who gains access after the legitimate user has already authenticated and left the session available.

Malware Can Attack After Authentication Too

Windows Hello strengthens the process of proving who is using the device.

It does not mean every program running afterward is safe. Malicious software can still attempt to steal information, alter files, monitor activity, or exploit vulnerabilities after the legitimate user has signed in.

Authentication is therefore one layer of security rather than a replacement for operating-system updates, malware protection, application security, and cautious use.

Identity Protection Is Not Complete System Protection

Knowing who unlocked the computer does not automatically determine whether every process running inside that authenticated session should be trusted.

The Important Change Happened Behind the Sign-In Screen

Windows Hello is easy to notice because looking at a camera or touching a sensor is visibly different from typing a password.

The larger change is less obvious. Windows 10 began treating the enrolled device and cryptographic credentials as central parts of authentication instead of relying entirely on a reusable secret known by the user.

The biometric gesture becomes the convenient local proof that allows the legitimate person to use that stronger device-based identity.

The face did not become the password. It became the proof that the right person was present to use the credential protected by the computer.

The Keyboard No Longer Had to Begin Every Windows Session

For generations of computer users, the password box represented the front door to the operating system.

Windows Hello changed that expectation on compatible Windows 10 hardware. The computer could identify the enrolled user through a face, fingerprint, or iris and allow the session to begin without requiring the traditional password to be typed.

The improvement was visible as convenience, but its deeper purpose was reducing dependence on credentials that could be copied, stolen, phished, and reused elsewhere.

Authentication Could Depend on Something Harder to Steal Remotely

A biometric gesture combined with an enrolled device changes the problem from knowing a reusable secret to proving presence at a computer holding protected authentication material.

Your Face Became Useful Without Becoming a Secret You Had to Remember

A password works because the user remembers information that someone else should not know.

A face or fingerprint works differently. The person carries the characteristic naturally, while Windows Hello uses it locally to determine whether the authorized user is present.

With Windows 10, that distinction became part of the everyday PC sign-in experience. Authentication could finally become something the computer recognized about its owner rather than something its owner had to type correctly every time.
