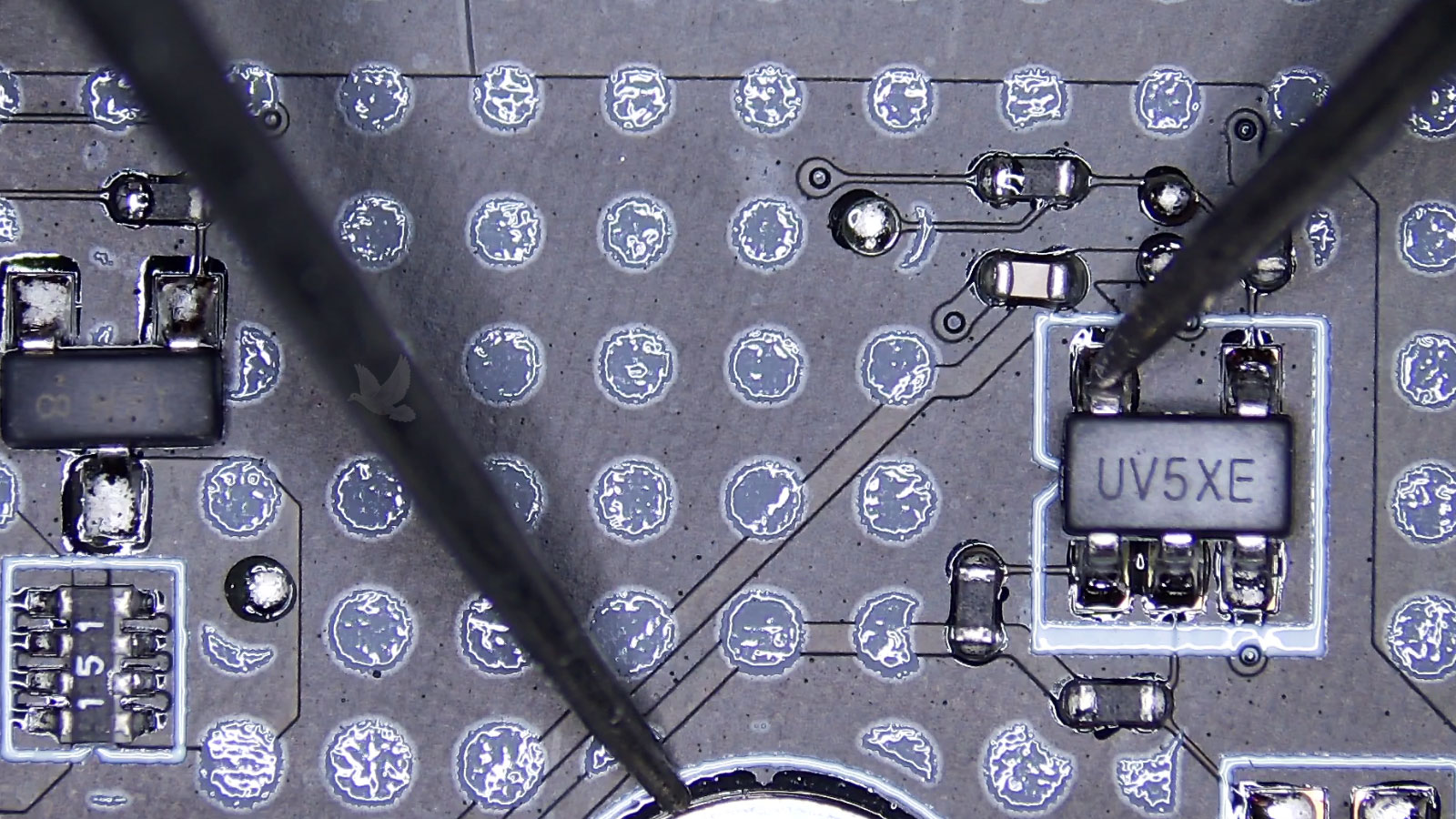

Measuring the UV5XE IC pin shorted to ground on a circuit board
A measurement on the UV5XE IC shows the tested pin shorted directly to ground, indicating an abnormal electrical path within the component or its connected circuit. This type of reading helps isolate the source of a board-level short during electronic troubleshooting. This repair image is an independent work sample and is not related to the educational article.

Using Tools From Both Systems Usually Required Crossing a Boundary

Windows and Linux developed around different software environments, command-line utilities, file conventions, and application ecosystems. A developer working primarily on Windows might still need Linux tools because a web server, development framework, remote system, or production environment depended on them.

There were already several ways to bridge that divide. A second operating system could be installed, Linux could run inside a virtual machine, or compatibility environments could reproduce portions of the Unix-style command-line experience.

In 2016, Microsoft introduced another approach. The Windows Subsystem for Linux allowed Windows 10 to run native Linux command-line programs directly within a Windows environment.

The Goal Was Not to Turn Windows Into Linux

Windows remained the operating system while a new compatibility layer provided an environment where Linux user-mode tools could operate alongside ordinary Windows software.

A Familiar Linux Shell Became Available Without Leaving Windows

Bash had long been one of the most familiar command shells in Linux and Unix-like environments. Developers used it to navigate file systems, launch programs, combine commands, automate repetitive work, and administer remote machines.

With the Windows 10 Anniversary Update, Microsoft made Bash on Ubuntu on Windows available through the Windows Subsystem for Linux.

Opening that environment gave developers access to a command-line experience built around Linux tools while the Windows desktop, applications, and development software remained available on the same computer.

The Shell Was Not Merely Styled to Look Like Bash

The environment was designed to execute native Linux command-line binaries rather than simply giving the Windows Command Prompt a collection of commands with similar names.

The Compatibility Work Happened Inside Windows

Running another operating system in a virtual machine is a straightforward way to obtain a Linux environment on a Windows PC. The virtual machine receives virtualized hardware and boots its own operating-system kernel.

The original Windows Subsystem for Linux followed a fundamentally different design. It did not boot a Linux kernel inside a conventional VM.

Instead, Windows provided infrastructure capable of supporting Linux user-mode programs and translating the system behavior those programs expected into operations the Windows kernel could service.

Linux Programs Were Running While the Windows Kernel Remained in Charge

The first generation of WSL created compatibility at the operating-system boundary rather than placing a complete Linux computer inside another virtual computer.

Familiar Linux Utilities Came From a Real Distribution

Microsoft worked with Canonical to provide an Ubuntu user-mode environment for WSL. That distinction mattered because developers were not being given an arbitrary collection of Microsoft-created commands that imitated common Linux utilities.

The environment included familiar tools and conventions associated with Ubuntu, giving users access to software they already understood from Linux development and administration.

For someone regularly moving between a Windows workstation and Linux servers, the difference reduced the amount of mental switching required between development environments.

Windows Was Hosting Familiar Linux Tools

The usefulness of WSL came partly from allowing existing command-line software and workflows to operate rather than requiring developers to learn replacements created specifically for Windows.

The Environment Was Not Limited to Commands Installed on Day One

A Linux distribution becomes considerably more useful when software can be added through its normal package-management system. WSL provided access to Ubuntu’s package ecosystem so additional command-line tools could be installed as needed.

That made the environment adaptable. A developer working with one programming language might need a very different collection of utilities from someone administering remote servers or processing files with command-line tools.

Instead of Windows attempting to anticipate every utility a Linux-oriented user might want, the Ubuntu environment supplied a familiar mechanism for obtaining more software.

The Command Line Did Not Arrive as a Fixed Toolset

Developers could expand the environment with packages appropriate to their own workflow rather than being restricted to a small predefined collection of Unix-style commands.

Linux Tools Did Not Have to Work in a Completely Separate World

A command-line environment becomes less convenient if every file must first be copied into a separate operating system before it can be processed. WSL therefore provided a way for Linux tools to reach files stored on Windows drives.

Windows volumes appeared through mount points within the Linux environment. A file on the Windows C drive, for example, could be reached through the corresponding mounted path.

This allowed a developer to keep a project on the Windows file system while using Linux command-line utilities as part of the workflow.

The Same Project Could Meet Two Toolchains

A file did not necessarily need a separate Linux copy merely because one step in the development process depended on a Linux command.

SSH Fit Naturally Into a Windows Development Workflow

Many servers on the internet run Linux, making Secure Shell an everyday tool for developers and system administrators who manage remote machines.

With Linux command-line utilities available locally through WSL, familiar SSH workflows could begin directly from the Windows computer without requiring a separate Linux installation.

The local shell and remote server could therefore share many of the same commands, scripting conventions, and authentication tools.

The Local Workstation Looked More Like the Remote Server

Reducing differences between development and production environments could make commands, scripts, and administrative procedures easier to carry from one system to another.

Existing Automation Did Not Always Need a Windows Rewrite

Bash is more than an interactive place to type commands. Shell scripts can combine utilities, variables, loops, conditions, pipelines, and remote commands into repeatable procedures.

Organizations and developers had accumulated large collections of such scripts throughout years of working with Linux and Unix-like systems.

WSL created opportunities to use that knowledge and, where compatible, existing scripts from a Windows workstation instead of automatically translating every workflow into batch files or PowerShell.

Compatibility Also Preserved Knowledge

The value was not only in running particular programs. Developers could continue using command-line habits and automation techniques they had already learned elsewhere.

The Linux Command Line Was Also a Development Platform

Modern software development frequently depends on more than a text editor and compiler. Projects may rely on scripting languages, package managers, build systems, source-control tools, command-line processors, and utilities chained together during development.

WSL made many Linux-oriented development tools available on a Windows machine through the same environment.

Languages and tools commonly associated with Linux workflows could therefore sit beside Windows development applications instead of forcing the developer to choose one operating-system environment for the entire project.

The Useful Part Was the Ecosystem Around the Shell

Bash provided the doorway, but the larger advantage came from the programming languages, utilities, package tools, and development workflows available behind it.

Most Windows Users Had No Reason to Replace Their Normal Applications

WSL was not introduced because ordinary Windows programs suddenly needed Linux commands to function. Someone using a browser, office applications, games, or typical desktop software could continue working without ever opening Bash.

The feature addressed a more specific problem faced by developers and technical users whose work regularly crossed operating-system boundaries.

For them, having Linux tools on the same workstation reduced the friction of maintaining separate environments merely to gain access to a particular command-line ecosystem.

A Powerful Feature Could Still Be Irrelevant to Most People

The significance of WSL came from solving a specialized development problem well rather than from becoming a replacement interface for everyday Windows computing.

Native Linux Binaries Did Not Guarantee Every Program Would Work

Supporting Linux command-line binaries without using a Linux kernel required Windows to reproduce many behaviors expected by Linux applications.

That compatibility was substantial but not complete. Programs could depend on system calls, kernel behavior, hardware access, or other capabilities that the early subsystem did not yet implement.

WSL therefore opened a surprisingly large Linux environment inside Windows while still having boundaries that distinguished it from running a complete Linux installation.

Compatibility Was an Engineering Layer, Not Magic

The closer a program depended on Linux-specific kernel behavior, the more likely the limitations of the original subsystem were to become important.

The Target Platform No Longer Had to Match the Desktop Platform

A developer’s computer and the system where the finished software runs do not always use the same operating system. Web applications may be written on Windows and deployed to Linux servers, while other projects may need tools originating from several different ecosystems.

WSL acknowledged that reality. Microsoft was making Windows more accommodating to development workflows whose final destination was not necessarily Windows itself.

That represented an important change in philosophy. The desktop operating system became a place where tools from another operating-system culture could participate directly in everyday development.

Windows did not need to become Linux for Linux tools to become useful on a Windows computer.

WSL Put Two Command-Line Worlds on the Same Computer

The Windows Subsystem for Linux introduced a new relationship between Windows and Linux development. Native Ubuntu command-line binaries, Bash, package-management tools, scripting environments, and familiar utilities became available from a Windows 10 workstation without requiring users to boot a separate Linux installation or maintain a conventional Linux virtual machine.

The original subsystem accomplished this through a compatibility architecture built into Windows rather than by running a Linux kernel. It also provided access to Windows files, allowing Linux-oriented tools to participate in projects that remained part of the user’s ordinary Windows environment.

For developers, the important change was not simply the arrival of another command prompt. Two software ecosystems that had traditionally required separate environments were now close enough to participate in the same workflow on the same desktop.
