What happens first, second, and third during a malfunction can reveal relationships that a single error message cannot.

A computer may develop several unusual behaviors during the same failure, but those behaviors do not necessarily occur independently. One event can change the conditions inside the system and create the next, producing a sequence that contains useful information about where the problem begins.

A machine might hesitate before a device disappears, lose one function before becoming unstable, or behave differently after a particular stage of startup has completed. Looking at the order of those events can help distinguish the original fault from the problems that follow it.

Instead of treating every symptom as a separate failure, the sequence can be examined as part of the electrical and operational relationship between them.

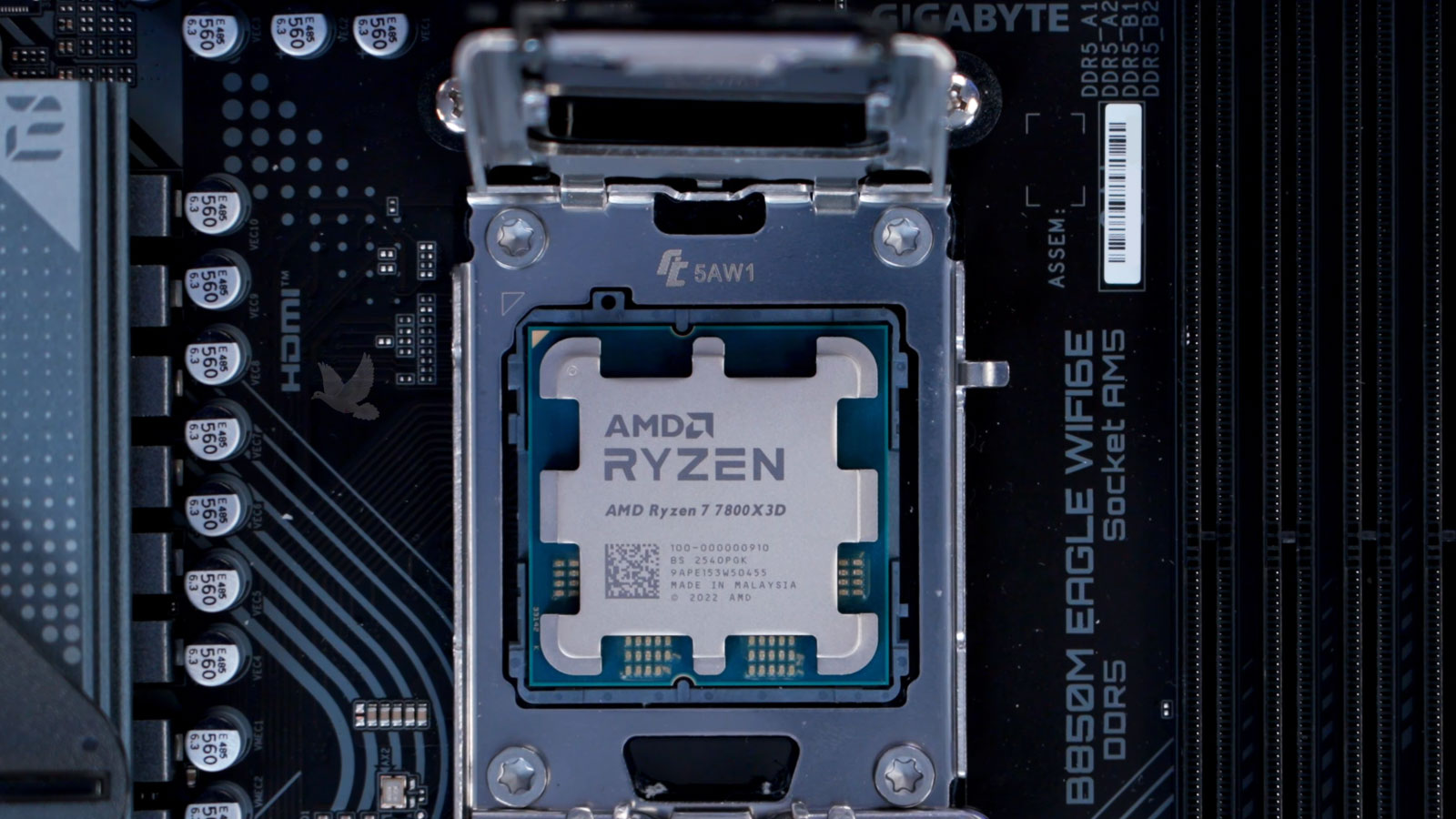

Many circuits do not operate at one fixed voltage from the moment a computer starts until it shuts down. Processors, memory systems, graphics hardware, and supporting circuitry can move between different electrical operating conditions as demand changes.

A problem may remain hidden while a circuit is operating at one level and appear only during the transition to another. The computer can therefore seem stable during light activity but encounter an error when hardware changes performance states.

The important clue is not simply whether the correct voltage exists. It is whether the circuit can move between its required levels at the proper moment and remain stable after the transition.

A fault in the circuitry responsible for making that adjustment can create failures that appear connected to workload even when temperature, software, and the primary component itself are not responsible.

Measuring a circuit while the computer is sitting idle captures only one operating condition. Observing what happens as electrical demand changes can expose a failure that a stationary reading never shows.

A component can be operating correctly and producing the signal or voltage expected from it, yet the circuit may still appear as though that component has failed.

What happens after the output leaves the device matters. Another component connected farther along the path can draw more current than intended, partially short the line, or otherwise place an abnormal electrical load on the source.

Under those conditions, measurements taken at the output may look incorrect even though the device generating it is capable of working normally.

Separating the source from the load during diagnosis can reveal which side is actually responsible. This prevents a component from being blamed simply because the electrical condition measured at its output is wrong.

Transistors and other semiconductor devices depend on specific electrical conditions at their control terminals. Supplying power to the circuit does not guarantee that those conditions are correct.

Many semiconductor circuits rely on carefully established bias voltages to place individual devices within the operating range required for their job. Those conditions may be created by resistors, reference sources, control circuitry, or combinations of several components.

If that bias changes, the semiconductor itself does not necessarily have to be defective. It may simply be operating outside the electrical region in which the circuit was designed to use it.

The result can be weak amplification, improper switching, distorted signals, excessive current, or a circuit that never reaches the state required for the next stage to operate.

Checking the supply voltage may therefore confirm that power is present while completely missing the condition preventing the circuit from functioning. Measuring the control and bias points around the device can reveal why powered hardware is still behaving incorrectly.

Connectors, removable modules, sockets, and edge contacts depend on exposed conductive surfaces meeting with sufficiently low resistance. Those surfaces can look completely normal while a microscopic layer between them changes the quality of the connection.

Oxidation, residue, transferred material, or contamination introduced during handling can interfere with that contact. Because the parts still fit together correctly, there may be no mechanical indication that anything is wrong.

The effect can also vary as the connection is disturbed. Removing and reinstalling a component may temporarily change the symptoms simply because the contact surfaces have moved against one another.

Examining and testing the contact interface can separate a problem in the hardware from a problem occurring precisely where two otherwise functional parts meet.

When reseating hardware changes a failure without permanently correcting it, the movement itself becomes useful information. The electrical interface can be investigated rather than assuming that one of the connected devices must be defective.

Digital circuits often depend on small supporting components to keep control lines at a defined electrical level when nothing else is actively driving them. Pull-up and pull-down resistors are commonly used for this purpose.

If one of these paths becomes open, changes value, or loses its connection, the signal line may be left electrically undefined. The circuit can still be physically connected from one device to another, yet the receiving hardware may no longer see a reliable high or low state.

That can prevent a function from being enabled, leave hardware waiting for a condition that never arrives, or produce behavior that changes as the electrical state of the line fluctuates.

Testing the control line together with the components that establish its resting state can reveal a fault that would be missed by checking only whether the signal path has continuity.
